Heavy-duty sawmill with the latest technology
Low operating costs and higher productivity with more log yield creates a formula for your success.
Benefits
  • Extra Heavy Duty Construction
  • Customize Bed Length & Log Handling Options
  • Efficient Timber Handling
  • Raised Operator Station
Description WM4000 Industrial Sawmill

The WM4000 is the ‘next generation’ in thin-kerf sawmilling. The WM4000 combines the profitability enhancements of thin-kerf blades with productivity advances in automated sawing technology to create an ideal solution for any sawmill.

Only one operator is needed to manage log handling, sawing, and timber removal for further processing making the WM4000 a highly profitable machine. The WM4000 adapts easily for whatever cutting requirements are needed and delivers higher log yield at lower investment and operating cost than alternatives, increasing profitability and ability to produce diverse products quickly.

The WM4000 can be used as a standalone sawmill to process all required materials, or as an addition to an existing sawmill to process irregular logs or to produce custom orders that existing equipment is not suited for.

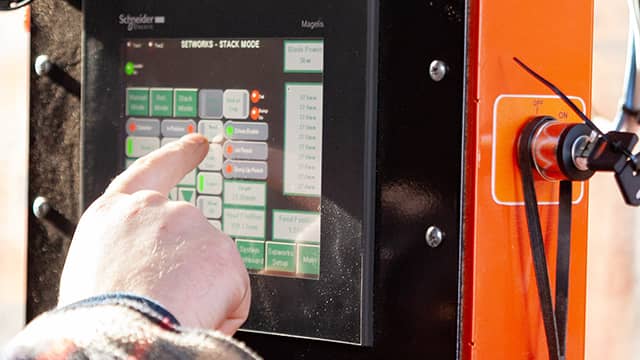

The advanced PLC setworks are displayed on a 19 cm touch-screen monitor which presents board and cant sizes along with current head height, feed position, and blade power. The setworks feature new ways of increasing productivity and reducing steps required in the sawing process, including remembering the start and stop locations of the log to reduce unneeded head movement. A built-in powered board conveyor automatically turns itself off after moving a board or cant from the sawmill.

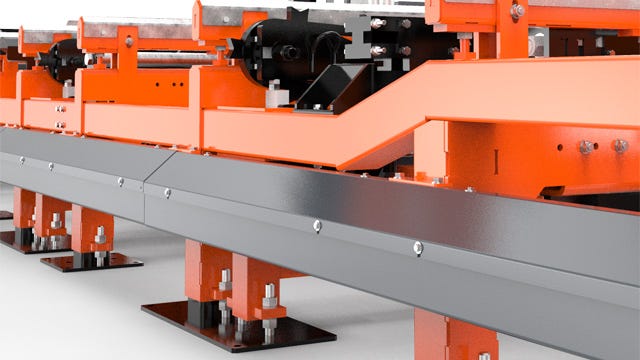

The log bed is heavily constructed - reinforced with 50% more steel than the WM3500. Servo motors ensure faster and accurate head positioning, resulting in more timber cut in each shift. Powerful hydraulic log handling enable easy manipulation of large logs and several options are available to meet your requirements.

Read More
Videos WM4000 Industrial Sawmill
Features WM4000 Industrial Sawmill
Specifications WM4000 Industrial Sawmill
Specifications
Power
Power 22 kW Electric
Cutting Capacity
Max. Log Diameter 100 cm
Max. Width of Cut 86 cm
Max. Cant Width 785 χιλιοστά
Max. Depth of Cut 33 cm
Max. Clamp Width 66 cm
Min. Clamp Width 5 cm
Head Features and Options
Setworks Touch Screen Setworks
Head Up/Down Electric
Head Forward/Reverse Electric
Blade Guide Arm Electric
Blade Lubrication Automatic
Blade Tension System Pneumatic
Debarker Optional
Sawdust Collection Port Diameter 150 mm
Additional Options Laser Sight
Roller, Double Block Blade Guide
Pantograph
Board Return Arms
Blade
Length 5000 mm
Width 38 mm
Blade Wheels
Blade Wheel Diameter 635 mm
Blade Wheel Type Belted
Blade Wheel Material Cast Steel
Bed Features and Options
Bed Construction Monorail
Angled Bed Rails N/A
Bed Extensions N/A
Trailer Package N/A

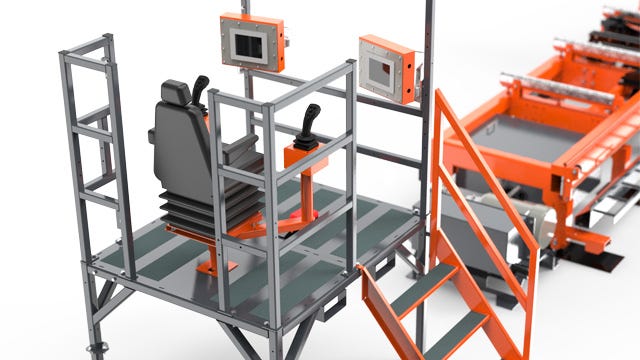

Bed Features Operator Station
Heavy-Duty Bed With Short Conveyor
Log Handling
Manual N/A
STANDARD Hydraulic N/A
SUPER Hydraulic Central Clamp
Log Leveling Roller

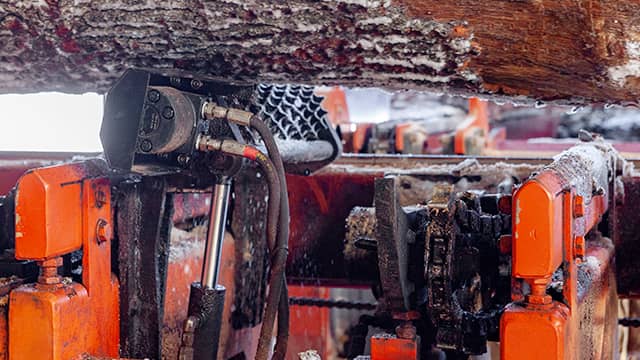

Power Roller
3 Double Vertical Supports

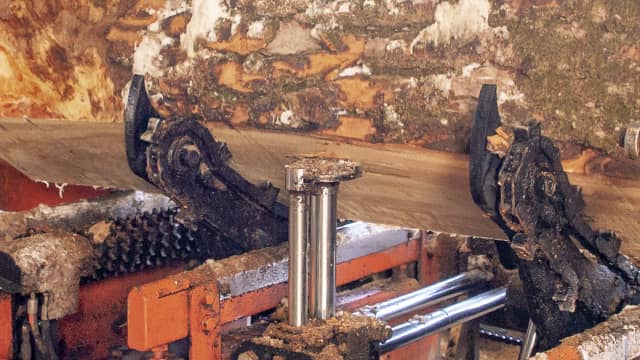

2 Chain Turners
2 Hold-down Clamps
Hydraulic Pump 7.5 kW
Sawmill Features and Options
Frame Construction Cantilever
Power Requirements 3 Phases, 400 V, 50 Hz
Shop Air Supply 110 PSI
Standards CE
Options Incline Conveyor
Transfer Deck
Log Deck 3.6 m
Log Deck 6 m
Air-Conditioned Operator Cab
