The MP280 planer/moulder makes a perfect solution for medium and large woodworking companies that want to supply their customers with premium wood products, such as floorboards, sidings, panels, door and window frames, decorative elements, and more.
The MP280 is equipped with an intuitive control panel with the switches engaging all motors and the feed mechanism separately, allowing for lower energy consumption and noise emission. The 13,78 kW electric motors drive the cutter heads at 6000 rpm, ensuring the best possible finish of the board surface.
The MP280 features two horizontal cutter heads – the top shaft with a length of 410 mm and a diameter of 88 mm, while the bottom one 300 mm x 72 mm, and two side cutterheads (one in a fixed position and one moveable), which mould the material with a maximum height of 100 mm. Increased efficiency is possible due to 4-sided cutting in just one pass through the machine.
The feed mechanism has been incorporated from the bigger MP360 unit and comes with a variable speed of 3-15 m/min. The material feeds in and out of the machine on the 1,2m tables with protective steel curtains installed over the infeed entrance to prevent material throwback.
There are four sawdust exhaust ports – one with a diameter of 125 mm and three with 100 mm - and additional covers and brushes installed inside the machine to drive out the waste material from around the cutter heads as efficiently as possible. The MP280 planer/moulder is compatible with the Wood-Mizer MES dust extraction systems, which have been designed to keep the workplace clean and tidy.
Read More

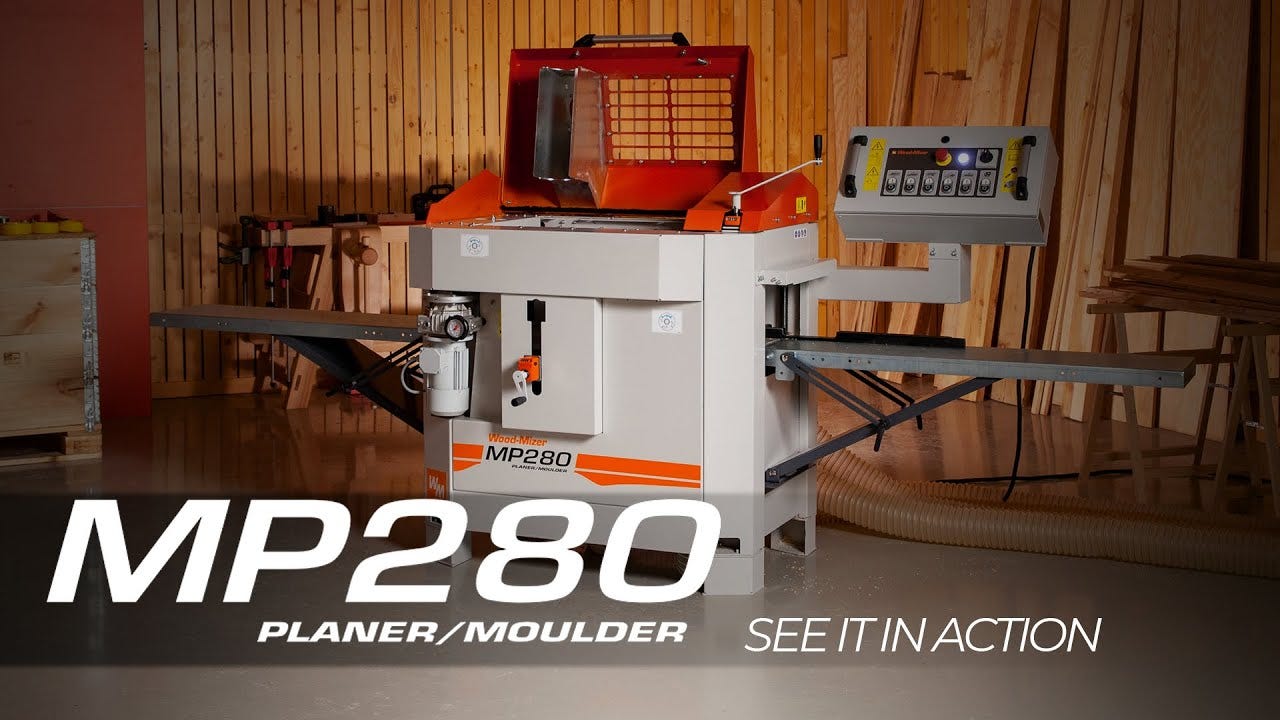

VideosMP280 Planer / Moulder
FeaturesMP280 Planer / Moulder

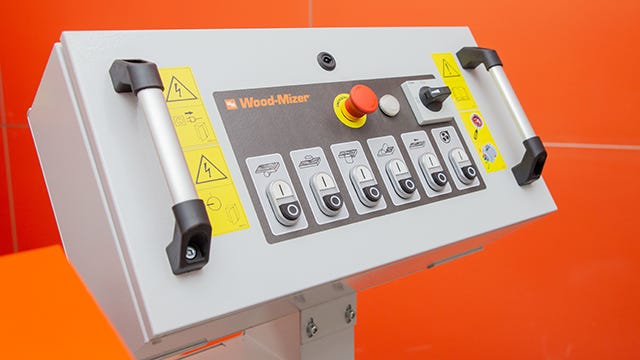

Operator panel
It allows for switching on/off all the cutterheads and motors individually.

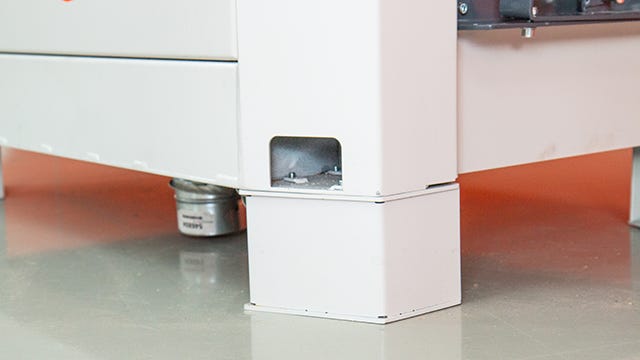

Heavy-duty construction
Made of cast iron, robust steel frame and high quality components

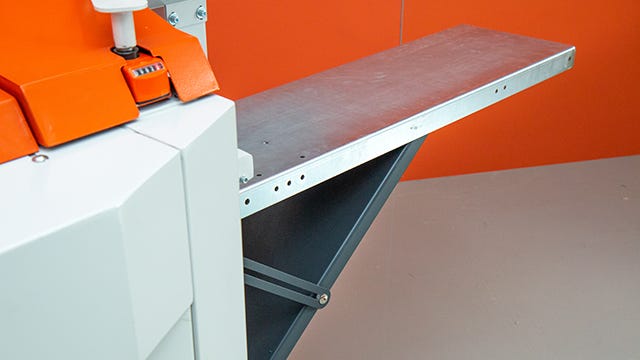

Infeed and outfeed tables
Make feeding of the material easier

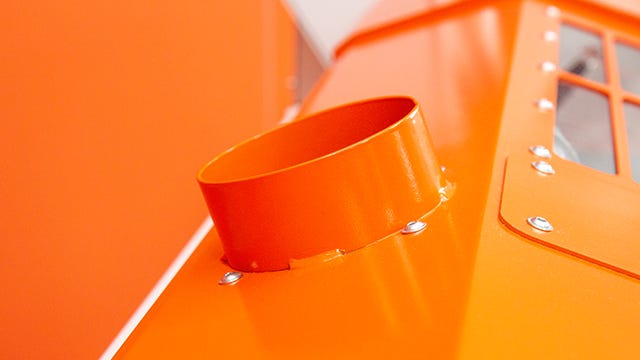

Sawdust extraction ports
The ports can be connected with the extraction system and will remove any sawdust from inside the machine

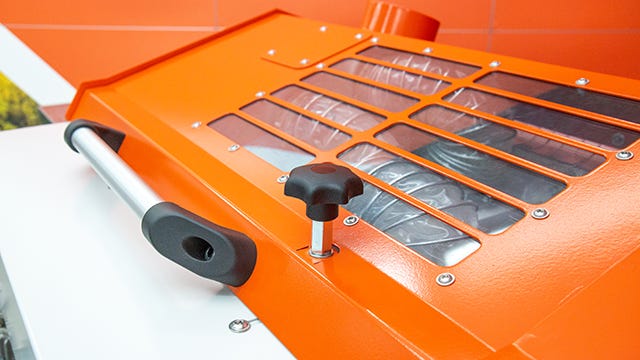

Top cover
The cover with a viewing window allows for a safe inspection of the woodworking machine

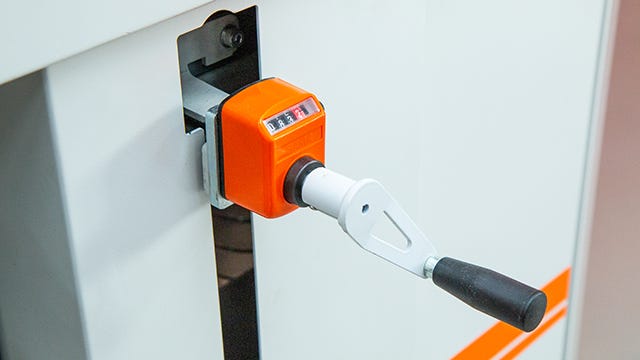

Width indicator
Allows for precise adjustment of the width in order to feed the materials of various dimensions
Operator panel
It allows for switching on/off all the cutterheads and motors individually.

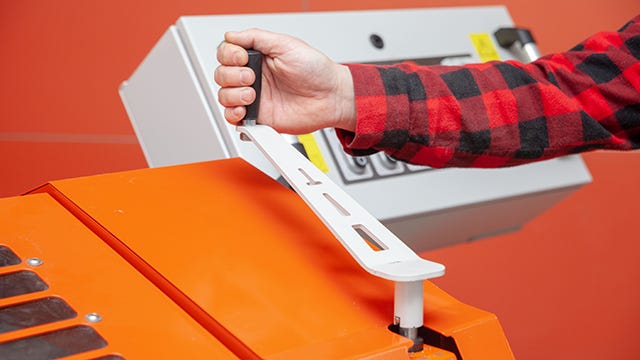

Easy adjustment
Ergonomic hand crank for adjusting the height of cast iron table.

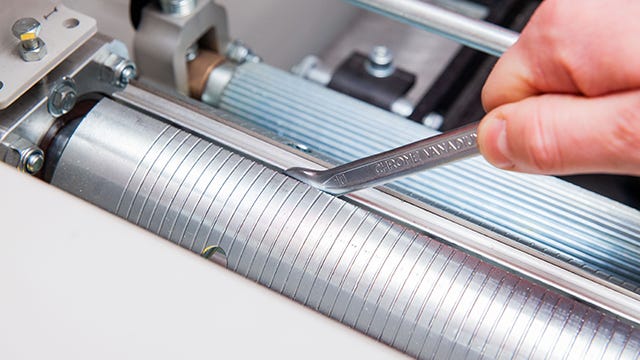

Easy replacing of knives
Replacing of knives isn’t complex and it takes up to 20 minutes.

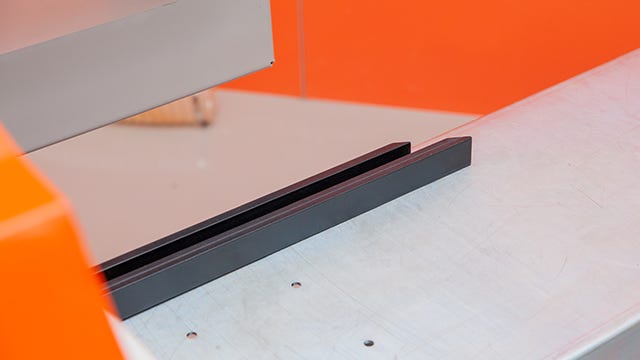

Extended guide bar
For easier feeding the material to the machine

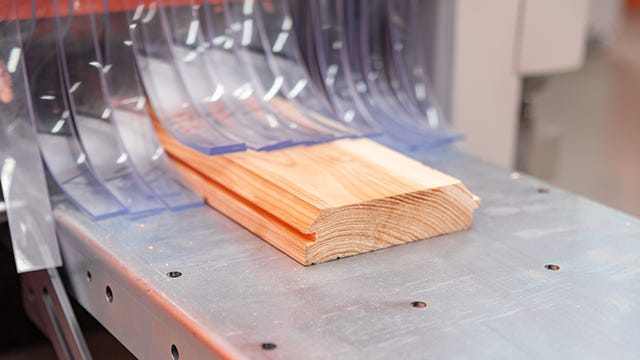

Feed speed
Variable 3-15 m/min

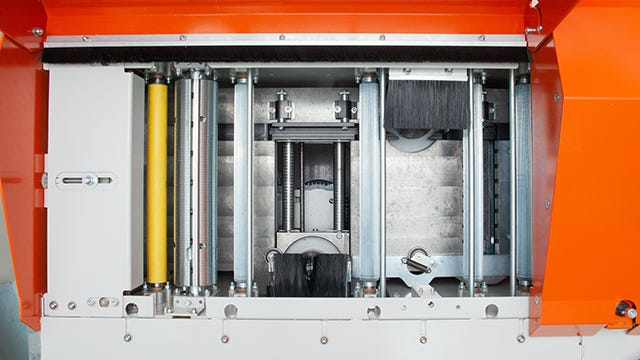

Four cutterheads
Mould and plane four sides simultaneously

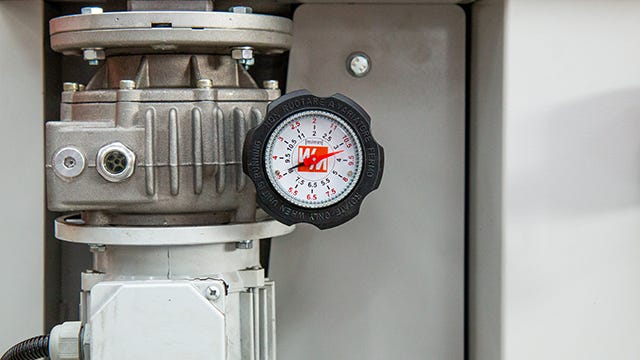

Gravity indicator
Shows the variable feed speed
Heavy-duty construction
Made of cast iron, robust steel frame and high quality components
Infeed and outfeed tables
Make feeding of the material easier
Sawdust extraction ports
The ports can be connected with the extraction system and will remove any sawdust from inside the machine
Top cover
The cover with a viewing window allows for a safe inspection of the woodworking machine
Width indicator
Allows for precise adjustment of the width in order to feed the materials of various dimensions
Operator panel
It allows for switching on/off all the cutterheads and motors individually.
Easy adjustment
Ergonomic hand crank for adjusting the height of cast iron table.
Easy replacing of knives
Replacing of knives isn’t complex and it takes up to 20 minutes.
Extended guide bar
For easier feeding the material to the machine
Feed speed
Variable 3-15 m/min
Four cutterheads
Mould and plane four sides simultaneously
Gravity indicator
Shows the variable feed speed
Heavy-duty construction
Made of cast iron, robust steel frame and high quality components
Infeed and outfeed tables
Make feeding of the material easier
Sawdust extraction ports
The ports can be connected with the extraction system and will remove any sawdust from inside the machine
Top cover
The cover with a viewing window allows for a safe inspection of the woodworking machine
Width indicator
Allows for precise adjustment of the width in order to feed the materials of various dimensions
SpecificationsMP280 Planer / Moulder
Specifications
4-sided Moulding Capacity
Max. Width - 4 Sided Planing
250mm
Max. Height - 4 Sided Planing
100mm (4")
2-sided Moulding Capacity
Max. Width - 2 Sided Planing
300mm (11 13/16")
Max. Height - 2 Sided Planing
230 mm (9")
1-sided Moulding or Thicknessing Capacity
Max. Width - 1 Sided Planing
410mm (16")
Max. Height - 1 Sided Planing
230mm (9")
Upper Horizontal Cutter
Upper Horizontal Cutter Diameter
88mm (3 7/16")
Upper Horizontal Cutter Width
410 mm (16.14”)
Upper Horizontal Cutter Power
4kW (5.5HP)
Upper Horizontal Cutter Speed
6000rpm / 50Hz
Lower Horizontal Cutter
Lower Horizontal Cutter Diameter
72mm (2 13/16")
Lower Horizontal Cutter Width
300mm (11 13/16")
Lower Horizontal Cutter Power
3kW (4HP)
Lower Horizontal Cutter Speed
6000rpm
Vertical Cutters
Vertical Cutters Spindle Diameter
30mm (1 3/16")
Vertical Cutters Max Cutter Height
100mm (3 15/16")
Vertical Cutters Max Diameter
140mm (5 1/2")
Vertical Cutters Power
3kW (4HP)
Vertical Cutters Rotation Speed
6000rpm
Power Feed
Feed Motor
0.37kW (0.5HP)
Feed Speed
3-15 m/min 50Hz
